Our Products

THROUGH OUR RELIABLE PARTNERS, WE PROVIDE CERTIFIED AND EFFICIENT PRODUCTS TO OUR CUSTOMERS TO DELIVER EXCELLENCE AND SAFETY TOWARDS OUR PRODUCTS

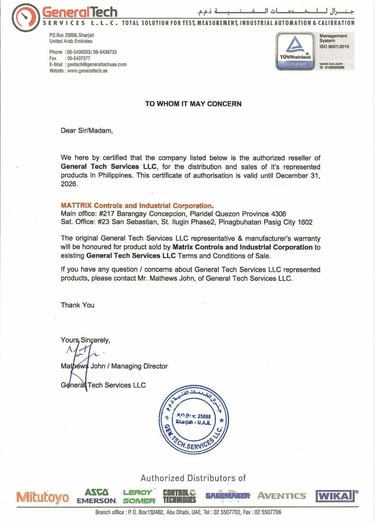

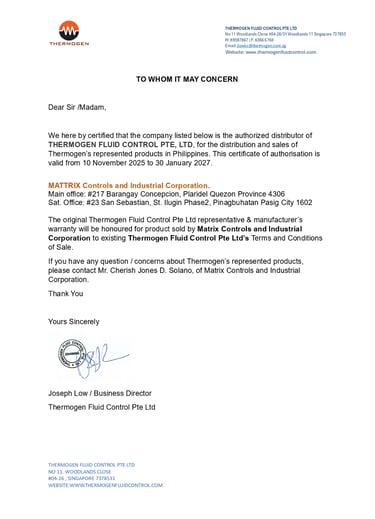

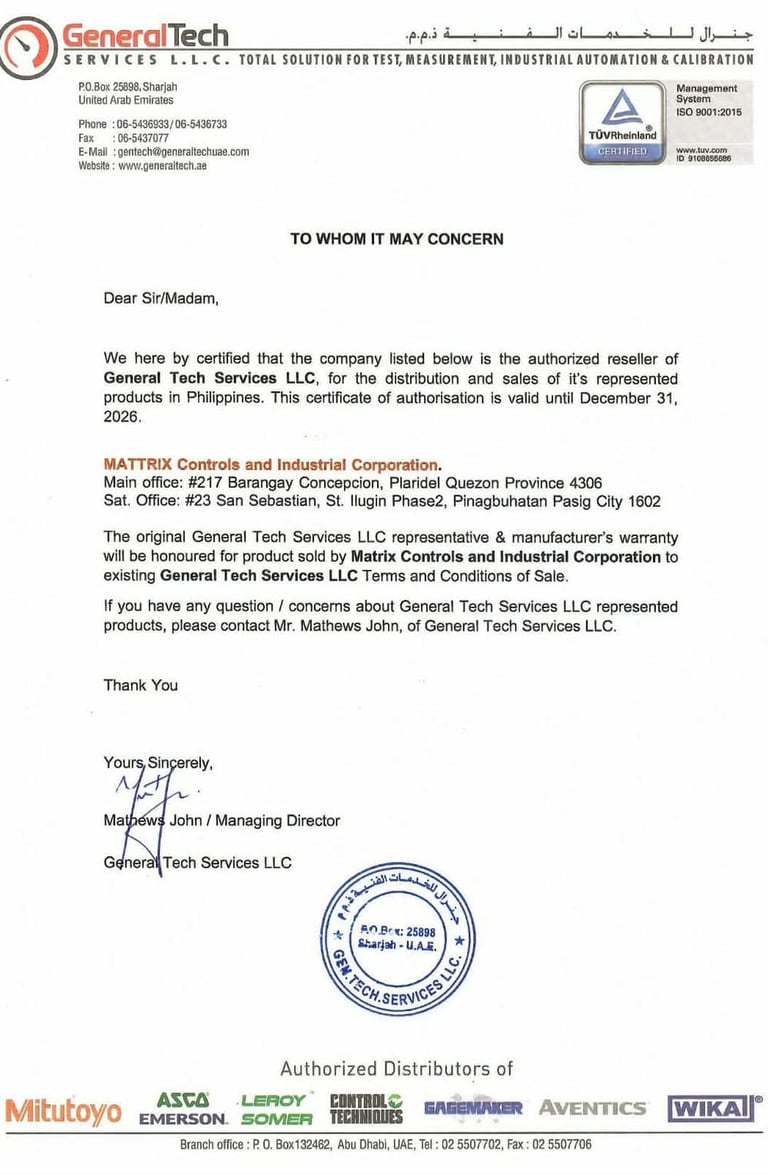

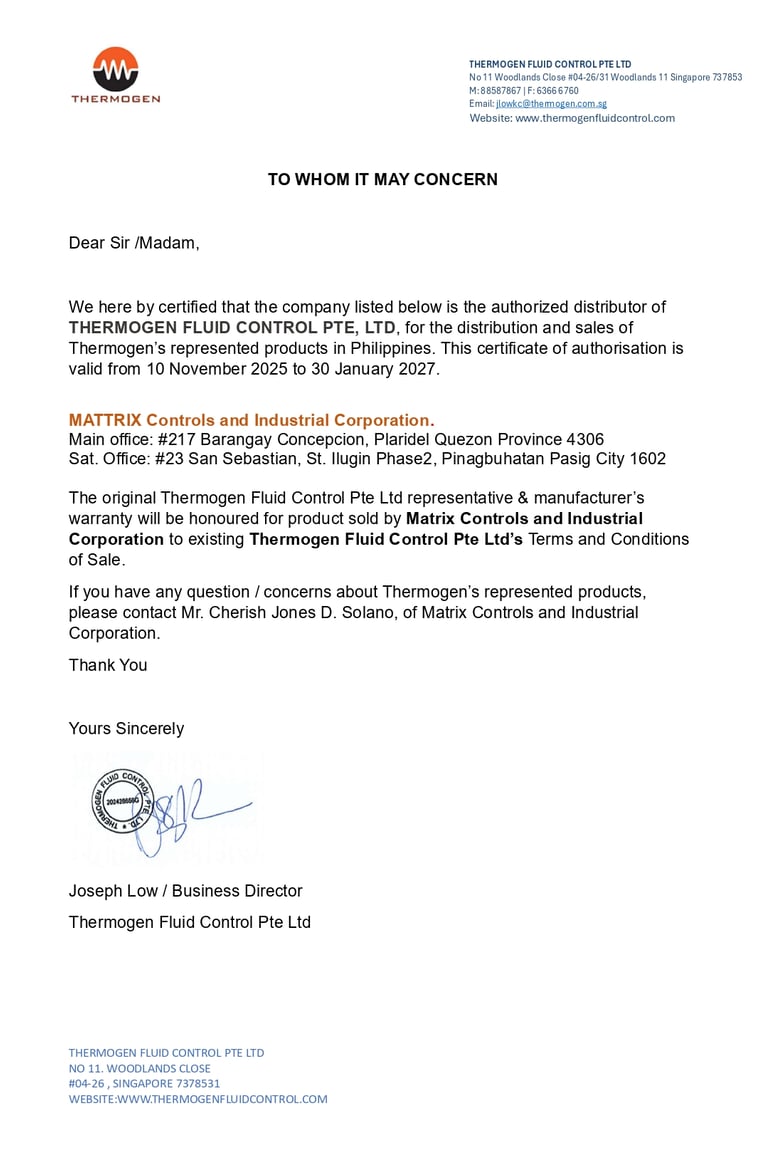

Authorization Letter

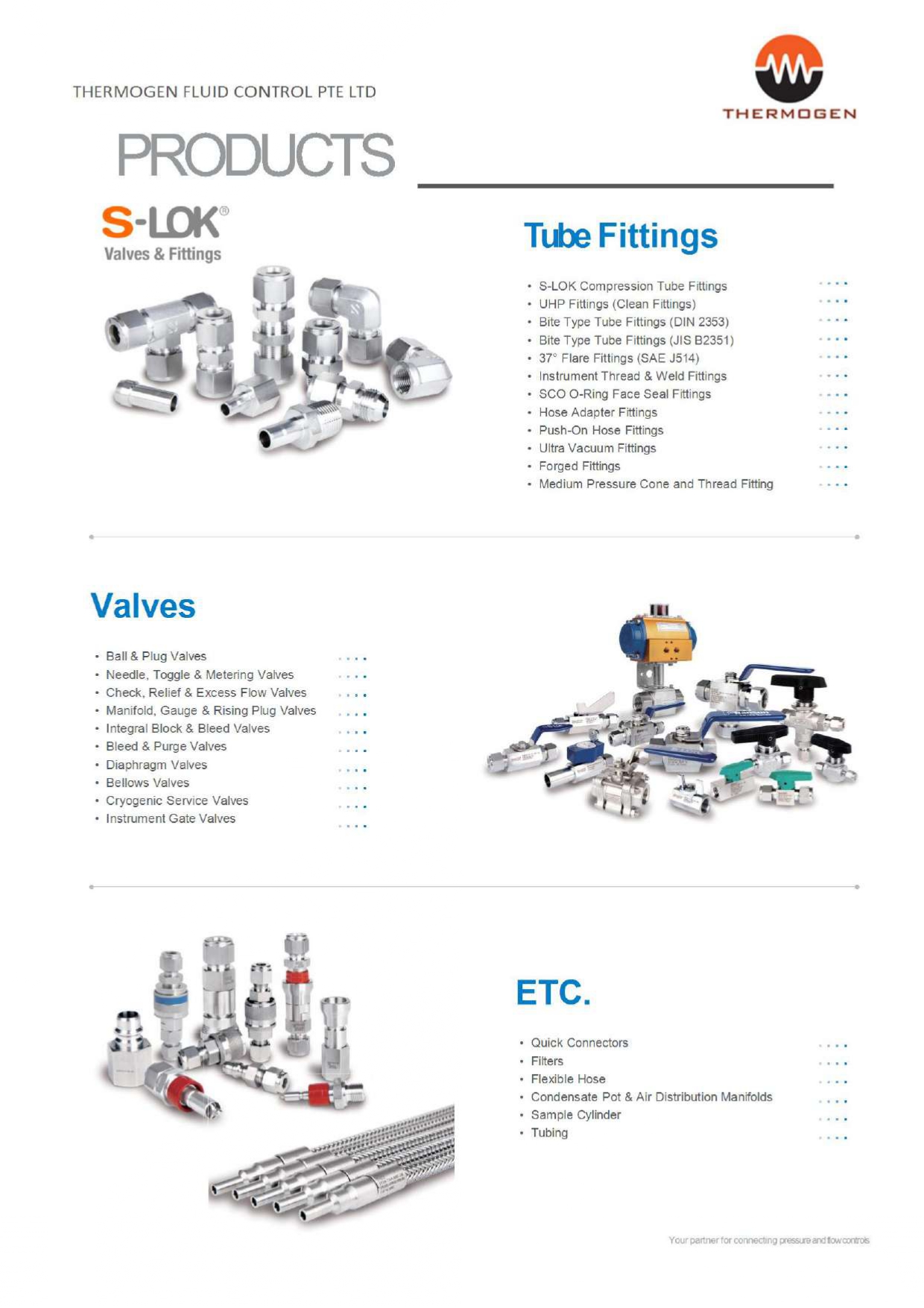

Products we can offer

Tube Fittings

S-LOK Compression Tube Fittings

UHP Fittings (Clean Fittings)

Bite Type Tube Fittings (DIN 2353)

Bite Type Tube Fittings (JIS B2351)

37° Flare Fittings (SAE J514)

Instrument Thread & Weld Fittings

SCO O-Ring Face Seal Fittings

Hose Adapter Fittings

Push-On Hose Fittings

Ultra Vacuum Fittings

Forged Fittings Medium Pressure Cone and Thread

Ball & Plug Valves

Needle, Toggle & Metering Valves

Check, Relief & Excess Flow Valves

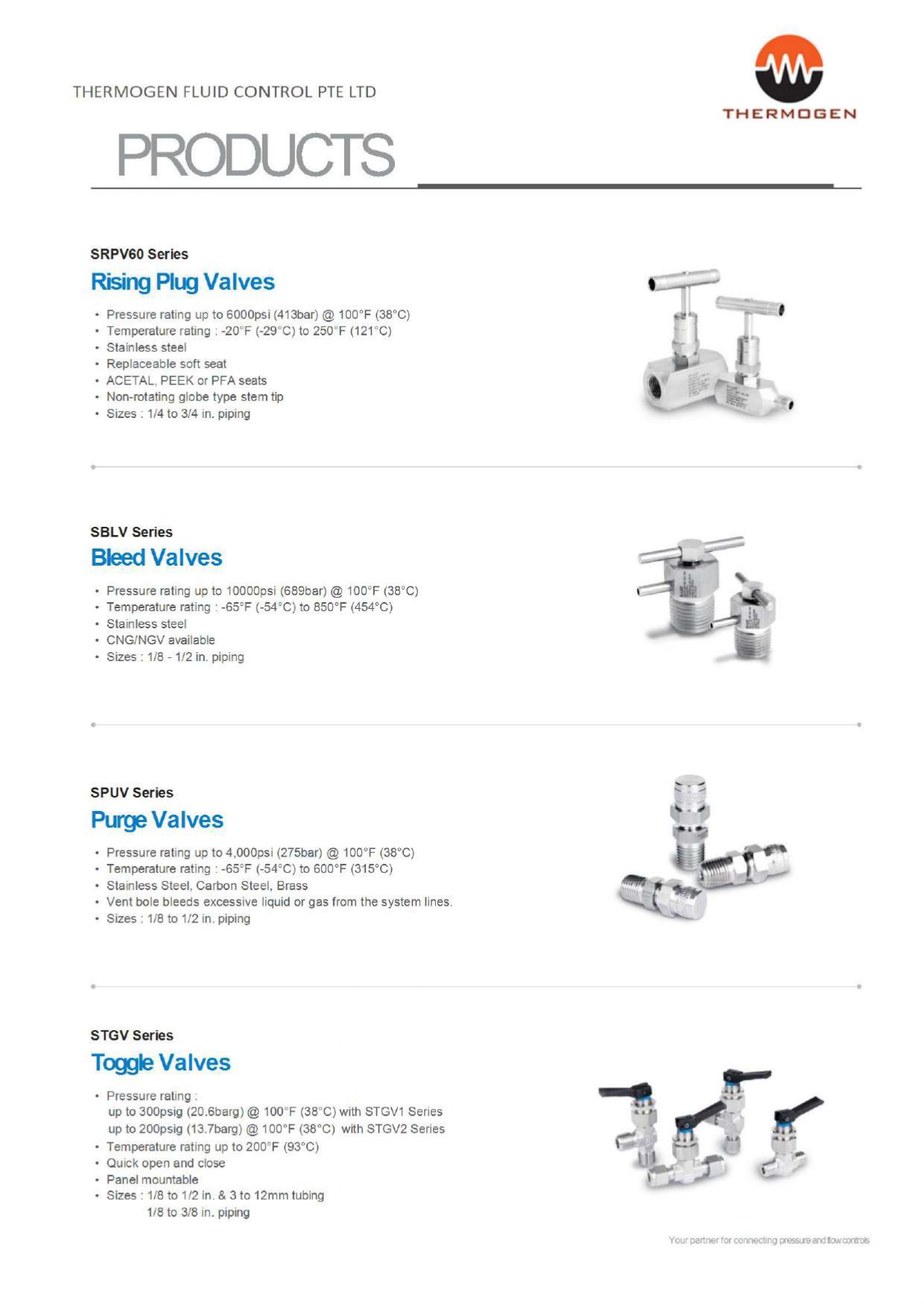

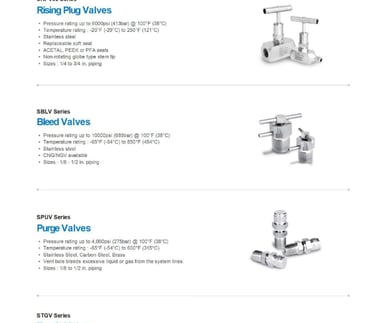

Manifold, Gauge & Rising Plug Valves

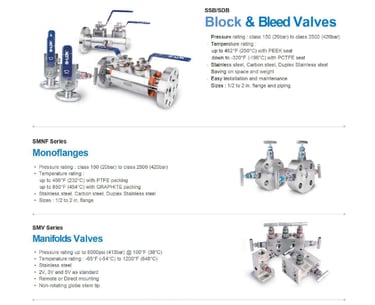

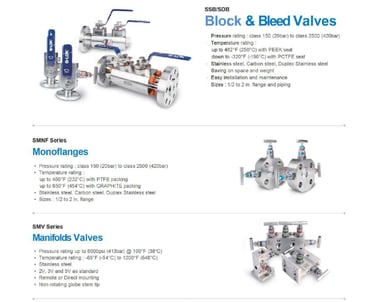

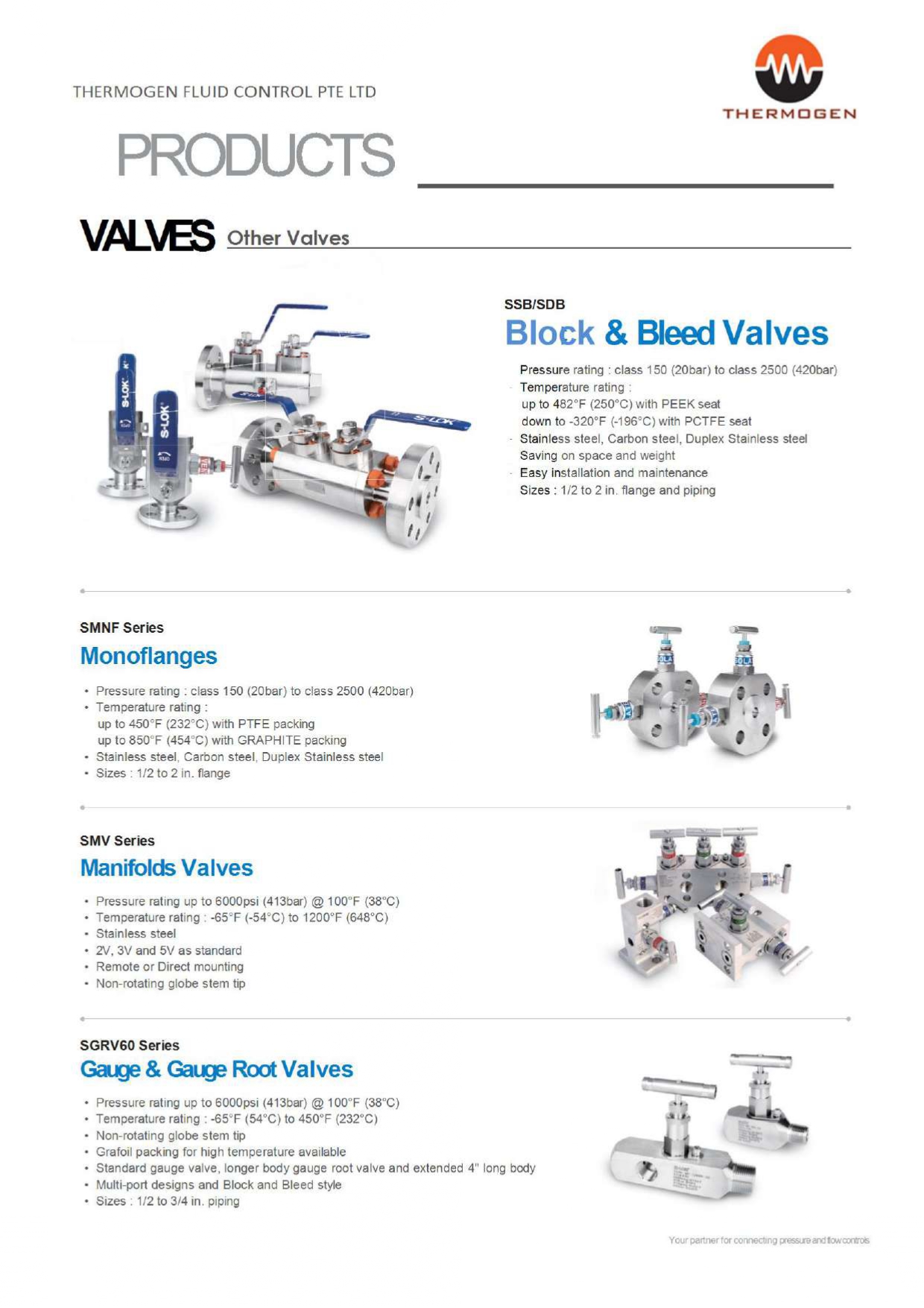

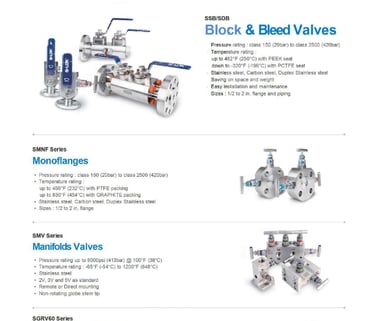

Integral Block & Bleed Valves

Bleed & Purge Valves

Diaphragm Valves

Bellows Valves

Cryogenic Service Valves

Instrument Gate Valves

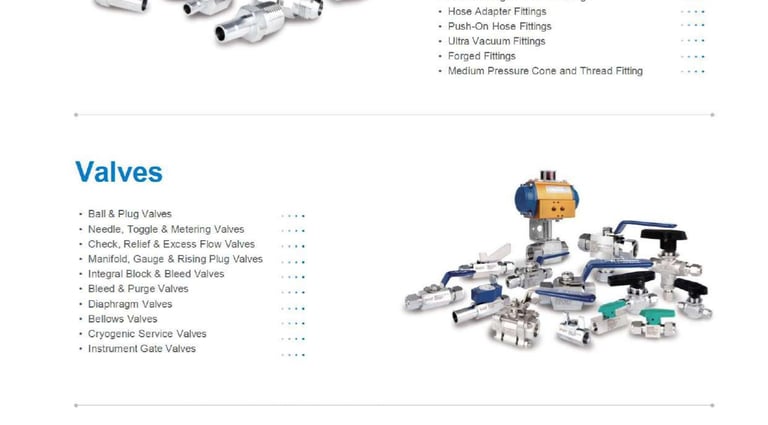

Valves

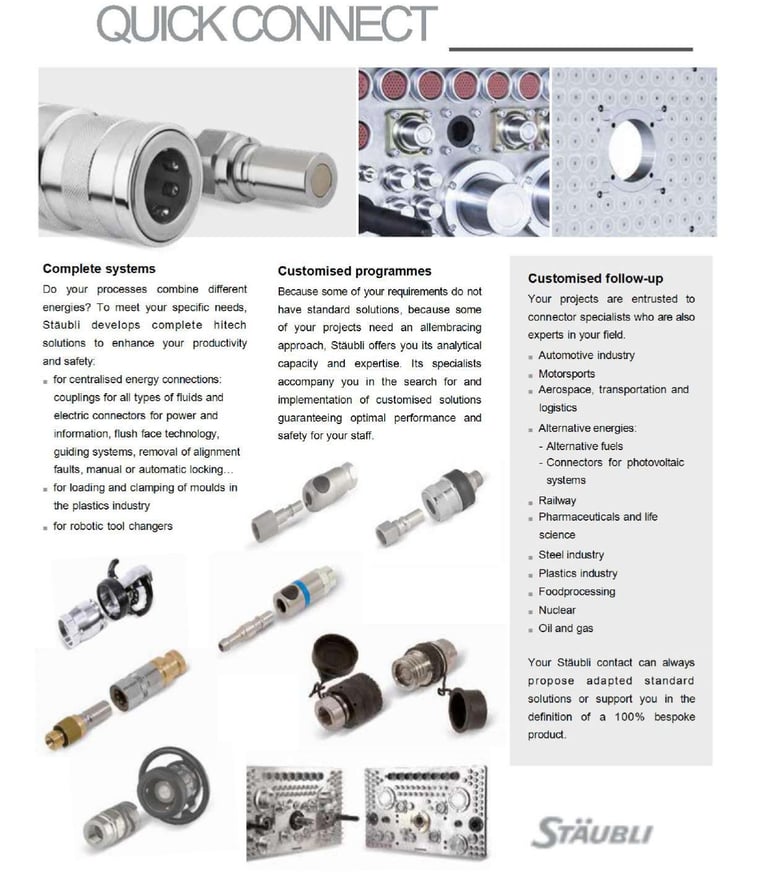

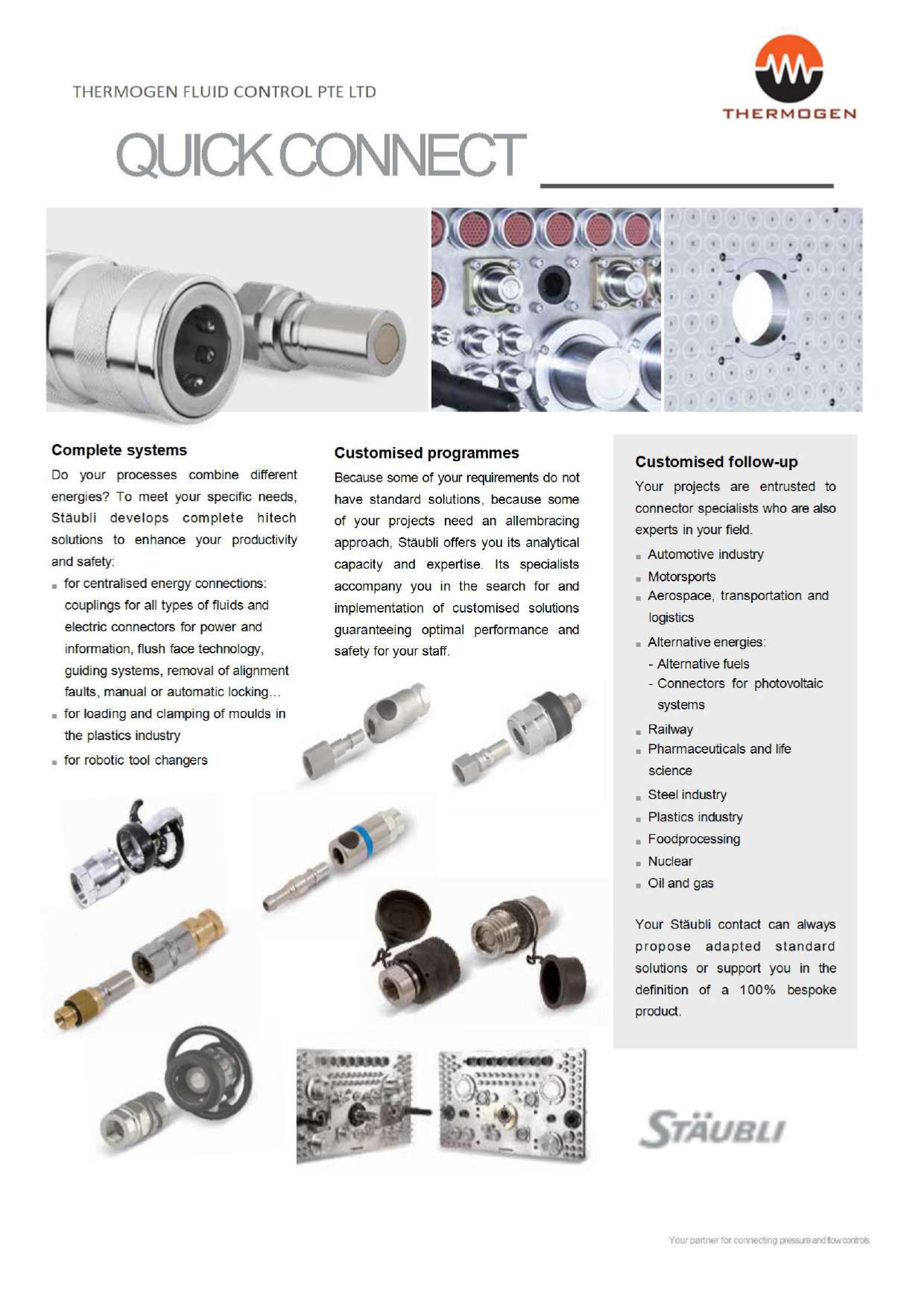

Quick Connectors

Filters

Flexible Hose

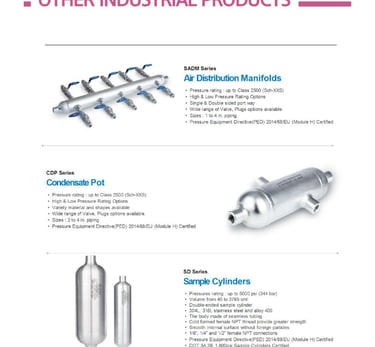

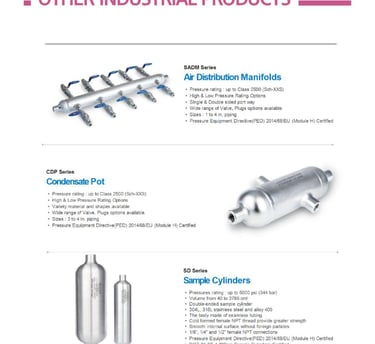

Condensate Pot & Air Distribution Manifolds

Sample Cylinder

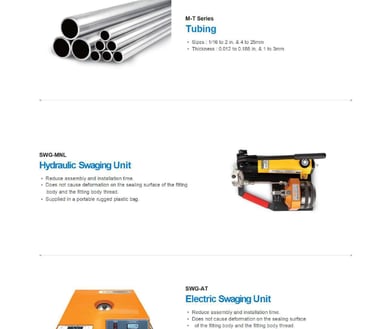

Tubing

ETC.

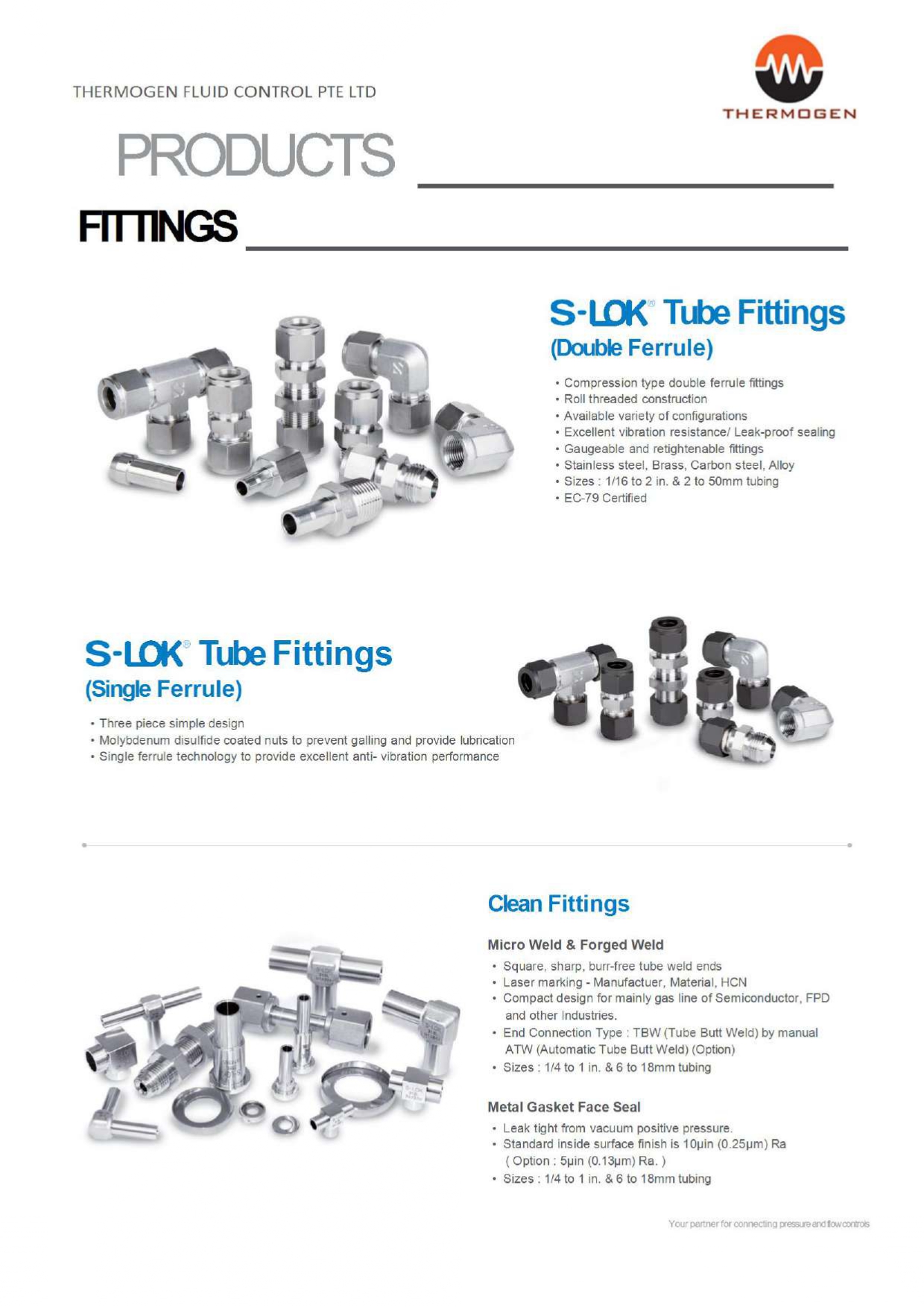

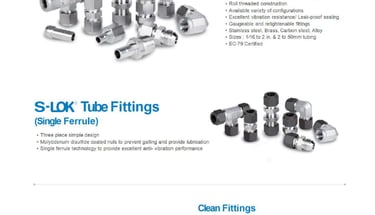

Compression type double ferrule fittings

Roll threaded construction

Available variety of configurations

Excellent vibration resistance/ Leak-proof sealing

Gaugeable and retightenable fittings

Stainless steel, Brass, Carbon steel. Alby

Sizes: 1/16 to 2 in. & 2 to 50mm tubing

EC-79 Certified

S-LOK Tube Fittings

(Double Ferrule)

Three piece simple design

Molybdenum disulfide coated nuts to prevent galling and provide lubrication

Single ferrule technology to provide excellent anti-vibration performance

S-LOK Tube Fittings

(Single Ferrule)

Clean Fittings

Micro Weld & Forged Weld

Square, sharp, burr-free tube weld ends

Laser marking - Manufactuer, Material, HCN

Compact design for mainly gas line of Semiconductor, FPD and other Industries.

End Connection Type TBW (Tube Butt Weld) by manual

ATW (Automatic Tube Buft Weld) (Option)

Sizes: 1/4 to 1 in. & 6 to 18mm tubing

Metal Gasket Face Seal

Leak tight from vacuum positive pressure

Standard inside surface finish is 10pin (0.25µm) Ra (Option: 5pin (0.13µm) Ra.)

Sizes: 1/4 to 1 in. & 6 to 18mm tubing

According to DIN2353 & ISO 8434-1 standard

Pressure rating up to 800bar (S series)

Temperature rating up to 750°F (400°C)

Two cutting edge single ring design

Stainless steel, Carbon steel, Brass

Sizes: 4 to 42mm tubing

Bite Type Tube Fittings

(DIN2353)

(JIS B2351)

According to JIS B2351 standard

Pressure rating up to 500bar

Temperature rating up to 572°F (300°C)

single cutting ring design

Stainless steel, Carbon steel, Brass

Sizes: 4 to 42mm tubing

1/8(6A) to 1-1/2 in. (40A) piping

Bite Type Tube Fittings

37° Flared Tue Fittings

(SAE J514)

According to SAE J514 & ISO 8434-2 standard

Pressure rating up to 345bar

Useable with either metric or inch tubes

Vibration resistance

Stainless steel, Carbon steel and Brass

Sizes: 1/8 to 2 in. & 3 to 38mm tubing

Instrument Pipe Fittings

According to ASME B31.1 & B31.3

NPT, ISO/BSP, and SAE threads

Rolled male threads

Male threads are protected with cap

Excellent threads constructed to ensure leak-proof & reliable systems

Stainless steel, Carbon steel, Brass

Sizes: 1/8 to 2 in. piping

EC-79 Certified

SCO O-Ring Face Seal Fittings

According to SAE J1453 & ISO 8434-3

Sealing from vacuum to positive pressure within a wide range of temperature up to 550°F (287°C).

Easy Installation & Disassembly

Eliminating turbulence and dead zone within the Fitting

Sizes: 1/4 to 1 in. tubing

Forged Pipe Fittings

According to ASME B16.11 & JIS B2316 standard

Pressure rating: class 2000, 3000, 6000, 9000

Stainless steel, Carbon steel

Sizes: 1/2 to 4 in. piping

Push-On Hose Fittings

No use special tools can quick installation

Easy and fast

All push on-hose fittings are reusable

Sizes: 1/4 to 1 in. hose

Easy installation

Reusable for other assembly

Stainless steel, Brass

Sizes: 1/8 in-1 in, hose

Hose Adapter Fittings

Ultra Vacuum Fittings

Temperature Rating: -25°F (31°C) to 400 deg F (204 C)

Assembled easy finger-tight. (Knurled Nut)

All Stainless Steel 316 and FKM O-Ring

The hellum leak tested to a maximum leak rate of 4 10 ^ 9 * atm cc/s at ambient temperature.

Dielectic Fittings

Electronical resistence of insulators at 70°F (20 ^ (- C)) 10 106 at 10V (dc)

Pressure rating: up to 5000psi (344bar)

Temperature rating: -40°F ( (- 40 deg C) to 200°F (93 deg * C)

Sizes: 1/4 to 1/2 in. & 10 to 12mm tubing

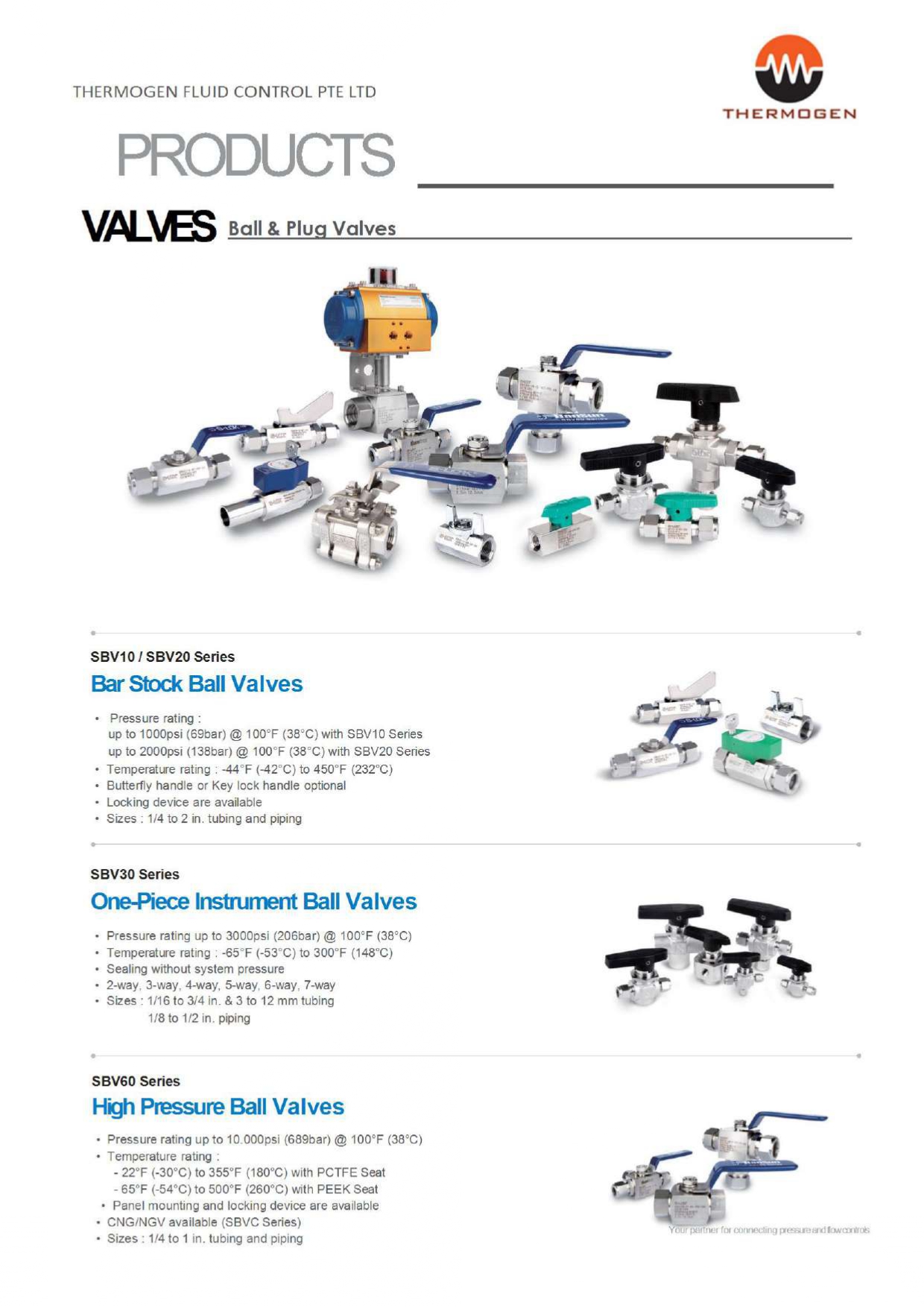

VALVES Ball & Plug Valves

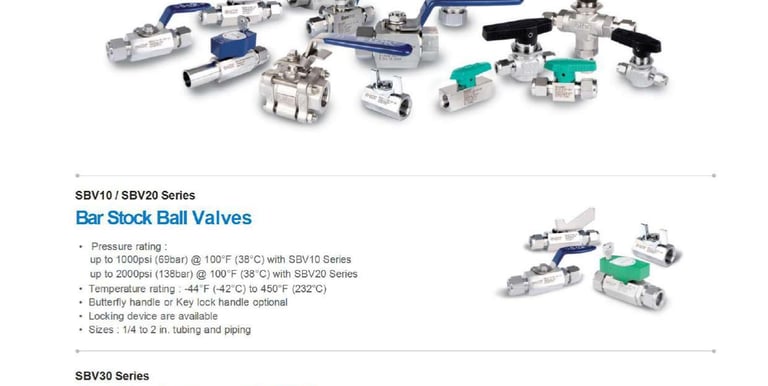

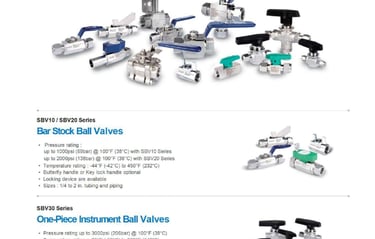

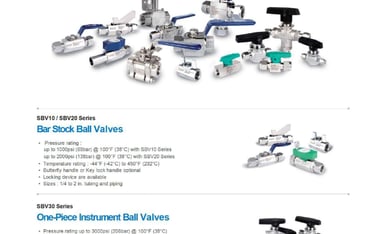

Bar Stock Ball Valves

SBV10/SBV20 Series

Pressure rating:

up to 1000psi (69bar) @ 100°F (38°C) with SBV10 Series up to 2000psi (138bar) @ 100°F (38°C) with SBV20 Series

Temperature rating: -44°F (-42°C) to 450°F (232°C)

Butterfly handle or Key lock handle optional

Locking device are available

Sizes: 1/4 to 2 in. tubing and piping

One-Piece Instrument Ball Valves

SSBV30 Series

Pressure rating up to 3000psi (206bar) @ 100°F (38°C)

Temperature rating: -65°F (-53°C) to 300°F (148°C)

Sealing without system pressure

2-way, 3-way, 4-way, 5-way, 6-way, 7-way

Sizes: 1/16 to 3/4 in. & 3 to 12 mm tubing

1/8 to 1/2 in. piping

High Pressure Ball Valves

SBV60 Series

Pressure rating up to 10.000psi (689bar) @ 100°F (38°C)

Temperature rating:

-22°F (-30°C) to 355°F (180°C) with PCTFE Seat -65°F (-54°C) to 500°F (260°C) with PEEK Seat

Panel mounting and locking device are available

CNG/NGV available (SBVC Series)

Sizes: 1/4 to 1 in. tubing and piping

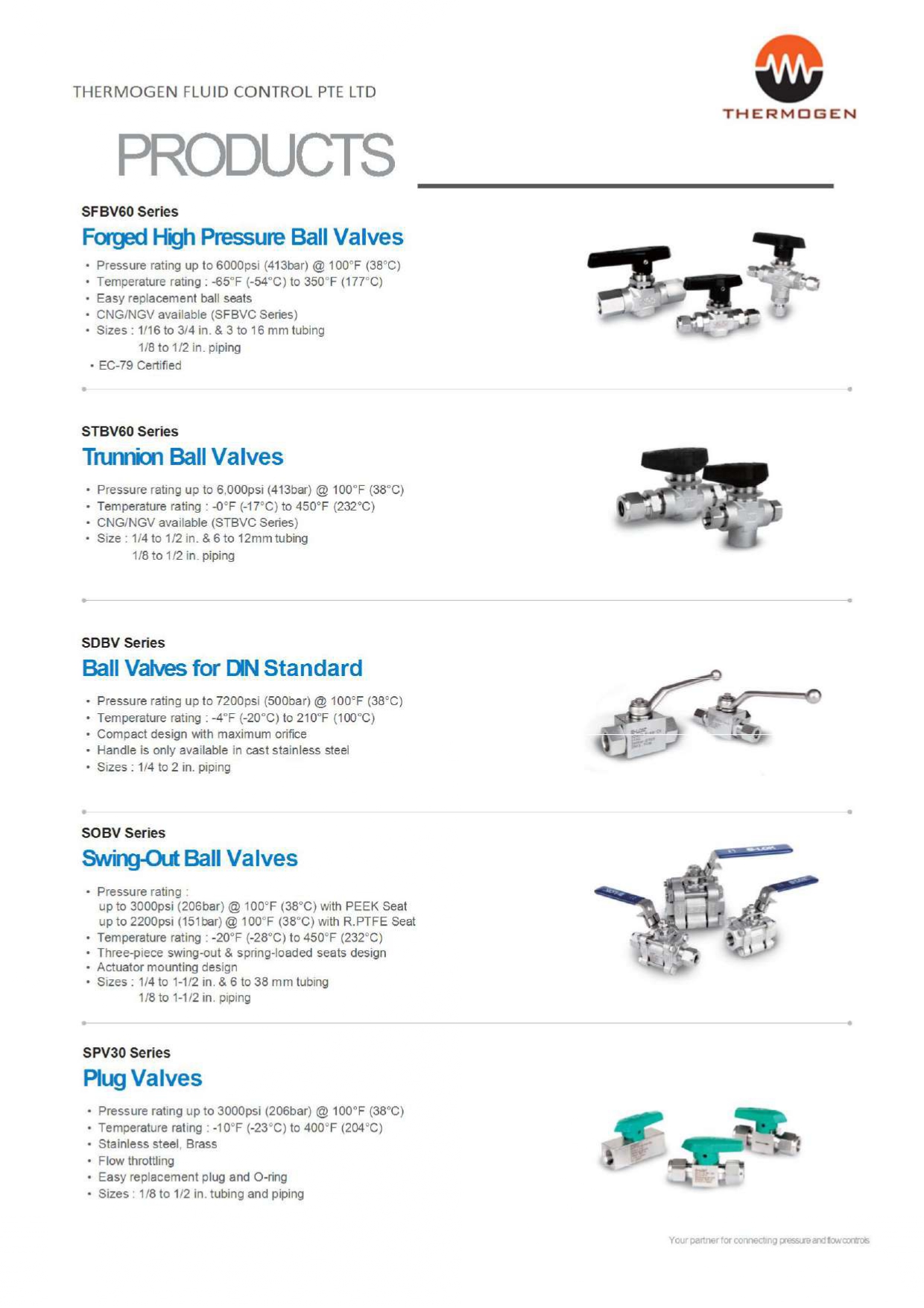

Forged High Pressure Ball Valves

SFBV60 Series

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating: -85°F (-54°C) to 350°F (177°C)

Easy replacement ball seats

CNG/NGV available (SFBVC Series)

Sizes: 1/16 to 3/4 in. & 3 to 16 mm tubing

1/8 to 1/2 in. piping

EC-79 Certified

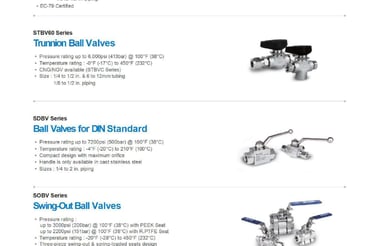

Trunnion Ball Valves

STBVV60 Series

Pressure rating up to 6.000psi (413bar) @ 100°F (38°C)

Temperature rating: -0°F (-17°C) to 450°F (232°C)

CNG/NGV available (STBVC Series)

Size: 1/4 to 1/2 in. & 6 to 12mm tubing

1/8 to 1/2 in. piping

Ball Valve for DIN Standard

SDBV Series

Pressure rating up to 7200psi (500bar) @ 100°F (38°C)

Temperature rating -4°F (-20°C) to 210°F (100°C)

Compact design with maximum orifice

Handle is only available in cast stainless steel

Sizes: 1/4 to 2 in. piping

Swing-Out Ball Valve

SOBV Series

Pressure rating

up to 3000psi (206bar) @ 100°F (38°C) with PEEK Seat up to 2200psi (151bar) @ 100°F (38°C) with R.PTFE Seat

Temperature rating: -20°F (-28°C) to 450°F (232°C)

Three-piece swing-out & spring-loaded seats design

Actuator mounting design

Sizes: 1/4 to 1-1/2 in. & 6 to 38 mm tubing

1/8 to 1-1/2 in. piping

Plug Valves

SPV30 Series

Pressure rating up to 3000psi (206bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 400°F (204°C)

Stainless steel, Brass

Flow throttling

Easy replacement plug and O-ring

Sizes: 1/8 to 1/2 in. tubing and piping

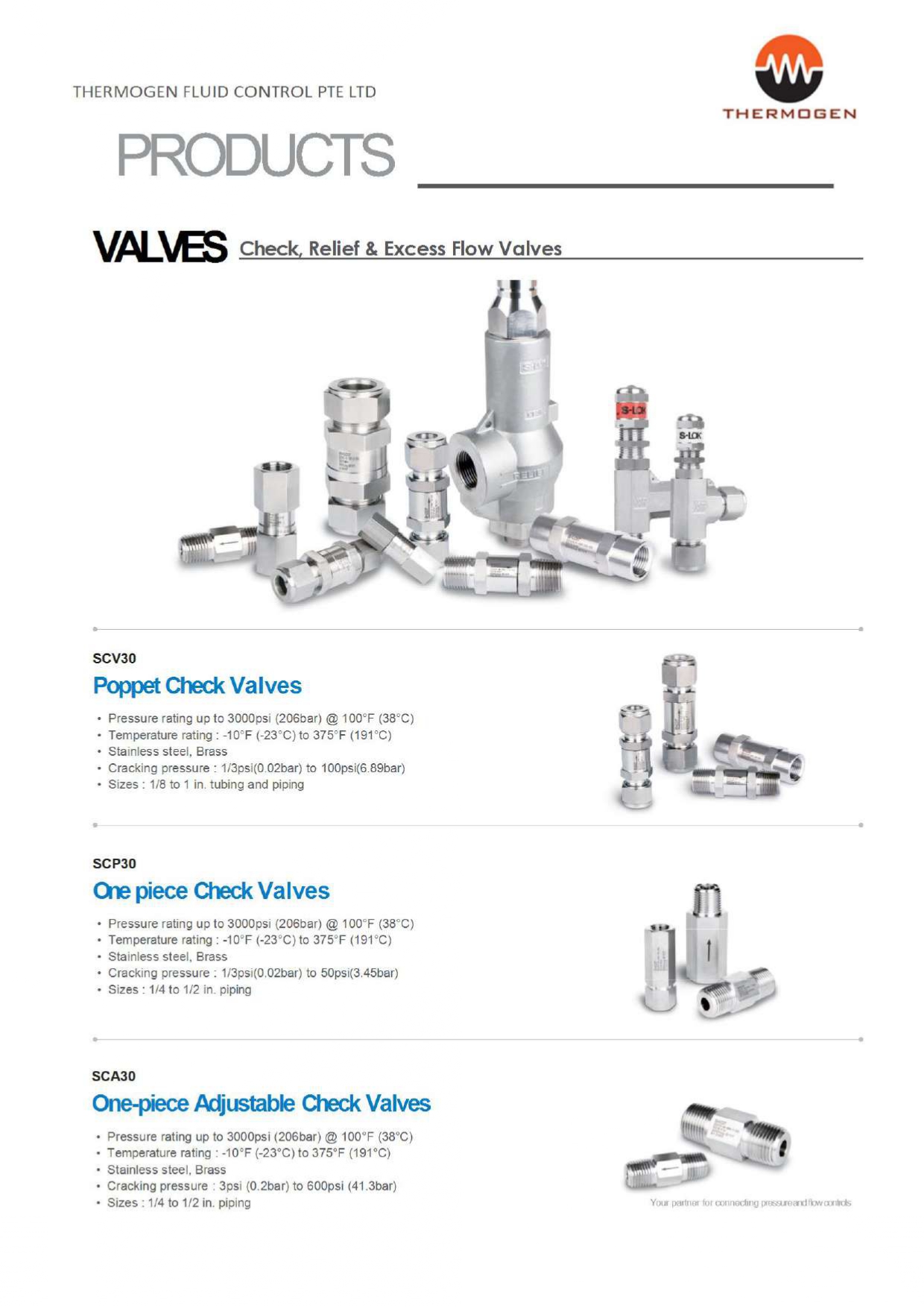

VALVES Check, Relief & Excess Flow Valves

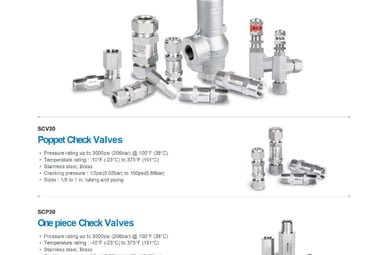

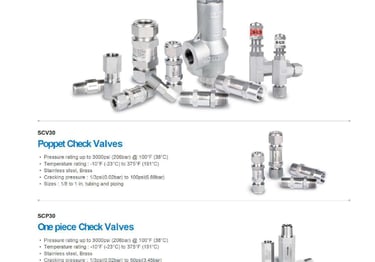

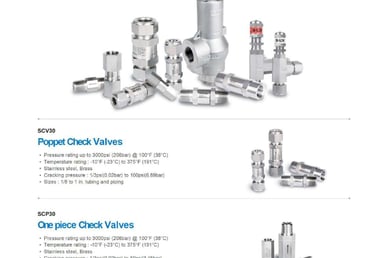

Poppet Check Valves

SSCV30

Pressure rating up to 3000psi (206bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C)

Stainless steel, Brass

Cracking pressure: 1/3psi(0.02bar) to 100psi(6.89bar)

Sizes: 1/8 to 1 in. tubing and piping

One Piece Check Valves

SCP30

Pressure rating up to 3000psi (206bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C)

Stainless steel, Brass

Cracking pressure: 1/3psi(0.02bar) to 50psi(3.45bar)

Sizes: 1/4 to 1/2 in, piping

One Piece Adjustable Check Valves

SCA30

Pressure rating up to 3000psi (206bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C)

Stainless steel, Brass

Cracking pressure 3psi (0.2bar) to 600psi (41.3bar)

Sizes: 1/4 to 1/2 in. piping

Adjustable Check Valves

SCDA Series

Pressure rating up to 3000psi (413bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C) with FKM

Stainless Steel, Brass

Cracking pressure: 3psi (0.2bar) to 600psi (41.3 bar)

Sizes: 1/4 in. & 6 to 8 mm tubing

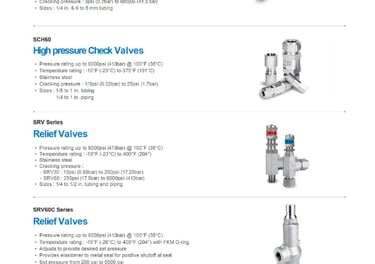

High Pressure Check Valves

SCH60

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C)

Stainless steel

Cracking pressure: 1/3psi (0.02bar) to 25psi (1.7bar)

Sizes: 1/8 to 1 in tubing

1/4 to 1 in piping

Relief Valves

SRV Series

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating: -10°F (-23°C) to 375°F (191°C)

Stainless steel

Cracking pressure: 1/3psi (0.02bar) to 25psi (1.7bar)

Sizes: 1/8 to 1 in tubing

1/4 to 1 in piping

Relief Valves

SRV60C Series

Pressure rating up to 6000psi (413bar) @ 100' F (38 deg C)

Temperature rating: - 15 deg F (- 26 deg C) to 400 deg * F (204") with FKM

Adjusts to provide desired set pressure

Provides elastomer to metal seal for positive shutoff at seat

Sel pressure from 200 psi to 5500 psi

Sizes: 1/2 to 1 in. piping

Excess Flow Valves

SEV Series

Pressure rating up to 6000psi (413bar) @ 100 deg F (38 deg C)

Temperature rating: - 10 deg F (- 23 deg C) to 400 deg * F (204) with FKM P

Spring-loaded actuation

Automatic reset

Stainless steel

Sizes: 1/4 to 1/2 in. & 6 to 12mm tubing

1/8 to 1/2 in. piping

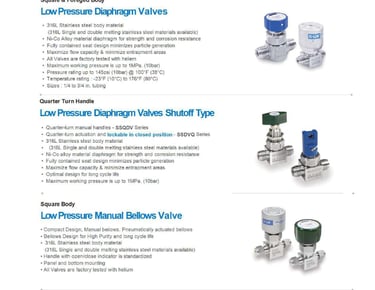

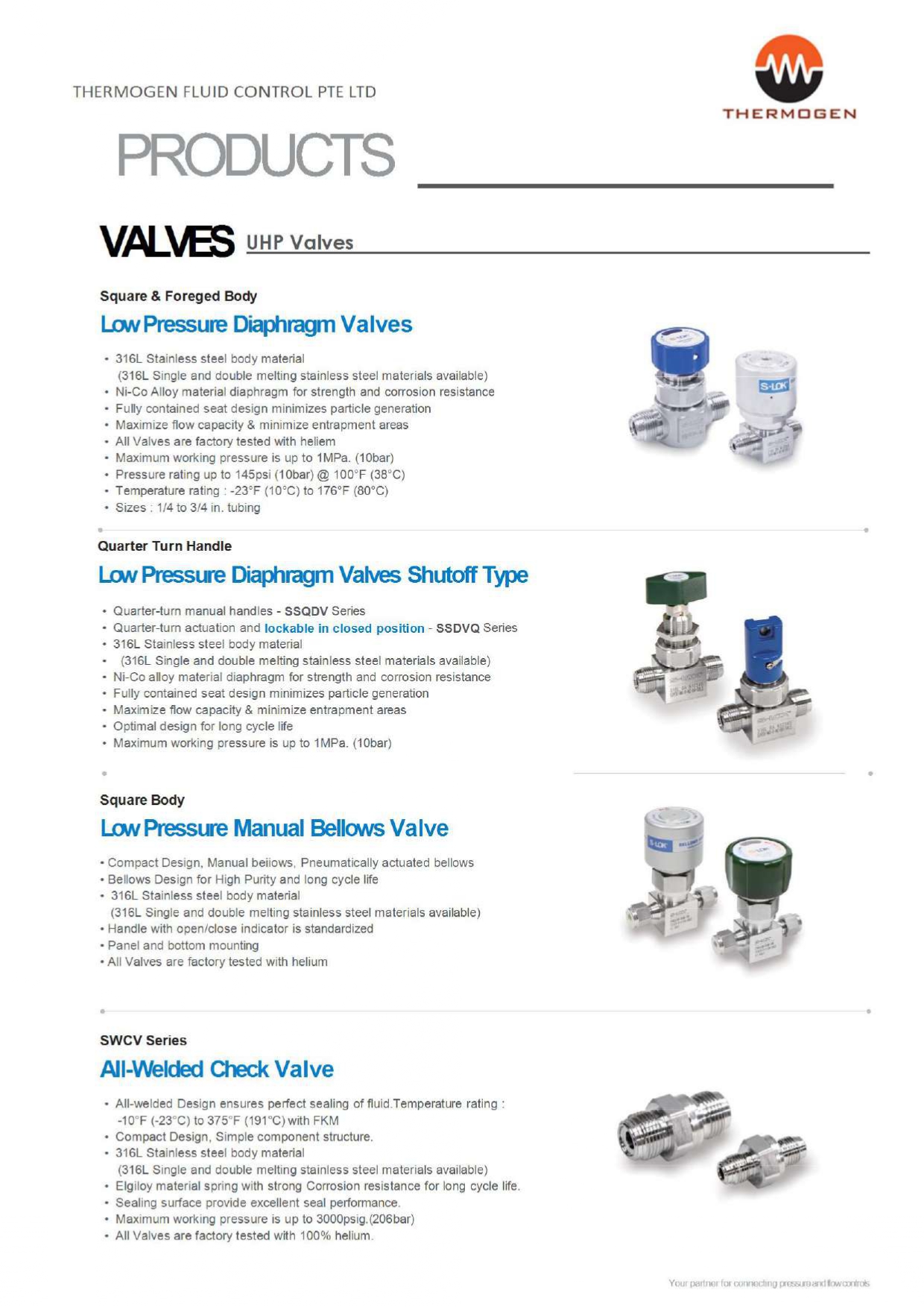

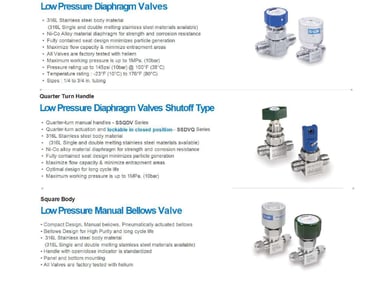

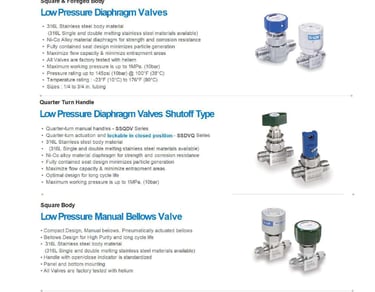

Low Pressure Diaphragm Valves

Square & Foreged Body

316L Stainless steel body material

(316L Single and double melting stainless steel materials available)

Ni-Co Alloy material diaphragm for strength and corrosion resistance

Fully contained seat design minimizes particle generation

Maximize flow capacity & minimize entrapment areas

All Valves are factory tested with helliem

Maximum working pressure is up to 1MPa. (10bar)

Pressure rating up to 145psi (10bar) @ 100°F (38°C)

Temperature rating: -23°F (10°C) to 176°F (80°C)

Sizes: 1/4 to 3/4 in. tubing

Low Pressure Diaphragm Valves Shutoff Type

Quarter Turn Handle

Quarter-turn manual handles - SSQDV Series

Quarter-turn actuation and lockable in closed position SSDVQ Series

316L Stainless steel body material

(316L. Single and double melting stainless steel materials available)

Ni-Co alloy material diaphragm for strength and corrosion resistance

Fully contained seat design minimizes particle generation

Maximize flow capacity & minimize entrapment areas

Optimal design for long cycle life

Maximum working pressure is up to 1MPa. (10bar)

Low Pressure Manual Bellows Valves

Square Body

Compact Design, Manual beliows. Pneumatically actuated bellows

Bellows Design for High Purity and long cycle life

316L Stainless steel body material

(316L Single and double melting stainless steel materials available)

Handle with open/close indicator is standardized

Panel and bottom mounting

All Valves are factory tested with helium

All Welded Check Valve

SWCV Series

All-welded Design ensures perfect sealing of fluid. Temperature rating: -10°F (-23°C) to 375°F (191°C) with FKM

Compact Design, Simple component structure.

316L. Stainless steel body material (316L Single and double melting stainless steel materials available)

Elgiloy material spring with strong Corrosion resistance for long cycle life.

Sealing surface provide excellent seal performance.

Maximum working pressure is up to 3000psig. (206bar)

All Valves are factory tested with 100% hellum.

VALVES Needle & Metering Valves

Integral Bonnet Needle Valves

SNV50 Series

Integral Bonnet Needle Valves

Pressure rating up to 5000psi (344bar) @ 100°F (38°F)

Temperature rating: -65°F (-54°C) to 450°F (232°C)

Stainless steel, Brass, and Alloy

In-Line or Angle pattem

Vee stem, Regulating stem, Soft seal

Sizes: 1/8 to 3/4 in. tubing 1/8 to 1/2 in. piping

Integral Bonnet Bar Needle Valves

SBNV60 Series

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating: -65°F (-54°C) to 450°F (232°C)

Stainless steel, Alloy

In-Line or Angle pattern

Vee stem, Regulating stem, Soft seat

Sizes: 1/4 to 1/2 in. tubing

1/4 to 3/4 in. piping

Union Bonnet Needle Valves

SUNV60 Series

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating:

up to 572°F (300°C) with PTFE packingup to 1200°F (649°C) with GRAFOIL packing

Non-rotating globe type stem tip

Sizes: 1/8 to 1 in tubing and piping

High Pressure Needle Valves

SHNV100 Series

Pressure rating up to 10,000psi (689bar) @ 100°F (38°C)

Temperature rating: -65°F (-54°C) to 450°F (232°C)

Stainless steel. Brass, and Alloy

In-Line or Angle pattern

Vee stem, Regulating stem, Soft seat

Sizes 1/4 to 3/4 in. piping

Square Bar Stock Needle Valves

SQNV Series

Pressure up to 6,000psig (413bar) @ 100°F (38°C)

Temperature rating: -20°F (-28°C) to 400°F (204°C)

Compact design & low operating torque

Non-rotating stem tip design

Sizes: 1/8 to 1/2 in. tubing and piping

Non Rotaining Stem Needle Valves

SDNV Series

Pressure rating up to 3,000psi (206bar) @ 100°F (38°C)

Temperature rating: -20°F (-28°C) to 204°F (93°C)

Compact design

Non-rotating stem design

Sizes 1/8 to 3/8 in. tubing 1/8 to 1/2 in piping

3-Way Test Cock Valves

STV50 Series

Pressure rating up to 5000psi (344bar) @100°F (38°C)

Temperature rating:

up to-65°F (-54°C) to 450°F (232°C) with PTFE packing

up to-65°F (-54°C) to 600°F (315°C) with PEEK packing

Stainless steel and Brass

Sizes: 1/8 to 1/2 in. & 6 to 12mm tubing

1/8 to 3/8 in. piping

Metering Valves

SMTV50 Series

Pressure rating:

up to 2000psi (137bar) @ 100°F (38°C) with SMTV1,2 Series

up to 1000psi (69bar) 100°F (38°C) with SMTV3 Series

Temperature rating: -10°F (-23°C) to 400°F (204°C) with FKM O-ring

Stainless, Brass

Variety of handle options, handle stop design

Flow setting lock system

Sizes: 1/16 to 1/4 & 3 to 6mm tubing

1/8 to 1/4 in. piping

Pressure rating: class 150 (20bar) to class 2500 (420bar)

Temperature rating

up to 482°F (250°C) with PEEK seat

down to -320°F (-196°C) with PCTFE seat

Stainless steel, Carbon steel, Duplex Stainless steel

Saving on space and weight

Easy installation and maintenance

Sizes: 1/2 to 2 in flange and piping

SSB/SDB

Block & Bleed Valves

Pressure rating: class 150 (20bar) to class 2500 (420bar)

Temperature rating:

up to 450 deg F (232°C) with PTFE packing

up to 850 deg F 454°C) with GRAPHITE packing

Stainless steel, Carbon steel, Duplex Stainless steel

Sizes: 1/2 to 2 in. flange

Monoflanges

SMNF Series

Manifold Valves

SMV Series

Pressure rating up to 6000psi (413bar) @ 100 deg F (38 deg C)

Temperature rating: -65°F (- 54 deg C) to 1200 deg F 648°C)

Stainless steel

2V, 3V and 5V as standard

Remote or Direct mounting

Non-rotating globe stem tip

Pressure rating up to 6000psi (413bar) @ 100 deg F (38 deg C)

Temperature rating: -65°F (54 deg C) to 450 deg F (232°C)

Non-rotating globe stem tip

Grafoil packing for high temperature available

Standard gauge valve, longer body gauge root valve and extended 4" long body

Multi-port designs and Block and Bleed style

Sizes. 1/2 to 3/4 in. piping

SGRV60 Series

Gauge & Gauge Root Valves

Rising Plug Valves

SRPV60 Series

Pressure rating up to 6000psi (413bar) @ 100°F (38°C)

Temperature rating: -20°F (-29°C) to 250°F (121°C)

Stainless steel

Replaceable soft seat

ACETAL, PEEK or PFA seats

Non-rotating globe type stem tip

Sizes: 1/4 to 3/4 in. piping

Bleed Valves

SBLV Series

Pressure rating up to 10000psi (689bar) @ 100°F (38°C)

Temperature rating: -65°F (-54°C) to 850°F (454°C)

Stainless steel

CNG/NGV available

Sizes: 1/8-1/2 in. piping

Pressure rating up to 4,000psi (275bar) @ 100°F (38°C) Temperature rating: -65°F (-54°C) to 600°F (315°C)

Stainless Steel, Carbon Steel, Brass

Vent bole bleeds excessive liquid or gas from the system lines

Sizes: 1/8 to 1/2 in. piping

Bleed Valves

SBLV Series

Bleed Valves

SBLV Series

Pressure rating

up to 300psig (20.6barg) @ 100°F (38°C) with STGV1 Series up to 200psig

(13.7barg) @ 100°F (38°C) with STGV2 Series

Temperature rating up to 200°F (93°C)

Quick open and close

Panel mountable

Sizes: 1/8 to 1/2 in. & 3 to 12mm tubing

1/8 to 3/8 in. piping

Tubing

M-T Series

Sizes: 1/16 to 2 in. & 4 to 25mm

Thickness: 0.012 to 0.188 in. & 1 to 3mm

Hydraulic Swanging Unit

MSWG-MNL

Reduce assembly and installation time

Does not cause deformation on the sealing surface of the fitting

body and the fitting body thread.

Supplied in a portable rugged plastic bag.

Electric Swanging Unit

SWG-AT

Reduce assembly and installation time.

Does not cause deformation on the sealing surface

of the fitting body and the fitting body thread.

Easy replacement of jig and die.

Can be assembly all available sizes by replacing the jig and die

Available size -Metric Tubing. 12-42 mm

- Fractional Tubing 1/2-2 in

220V version is standard and 110V version is available upon request.

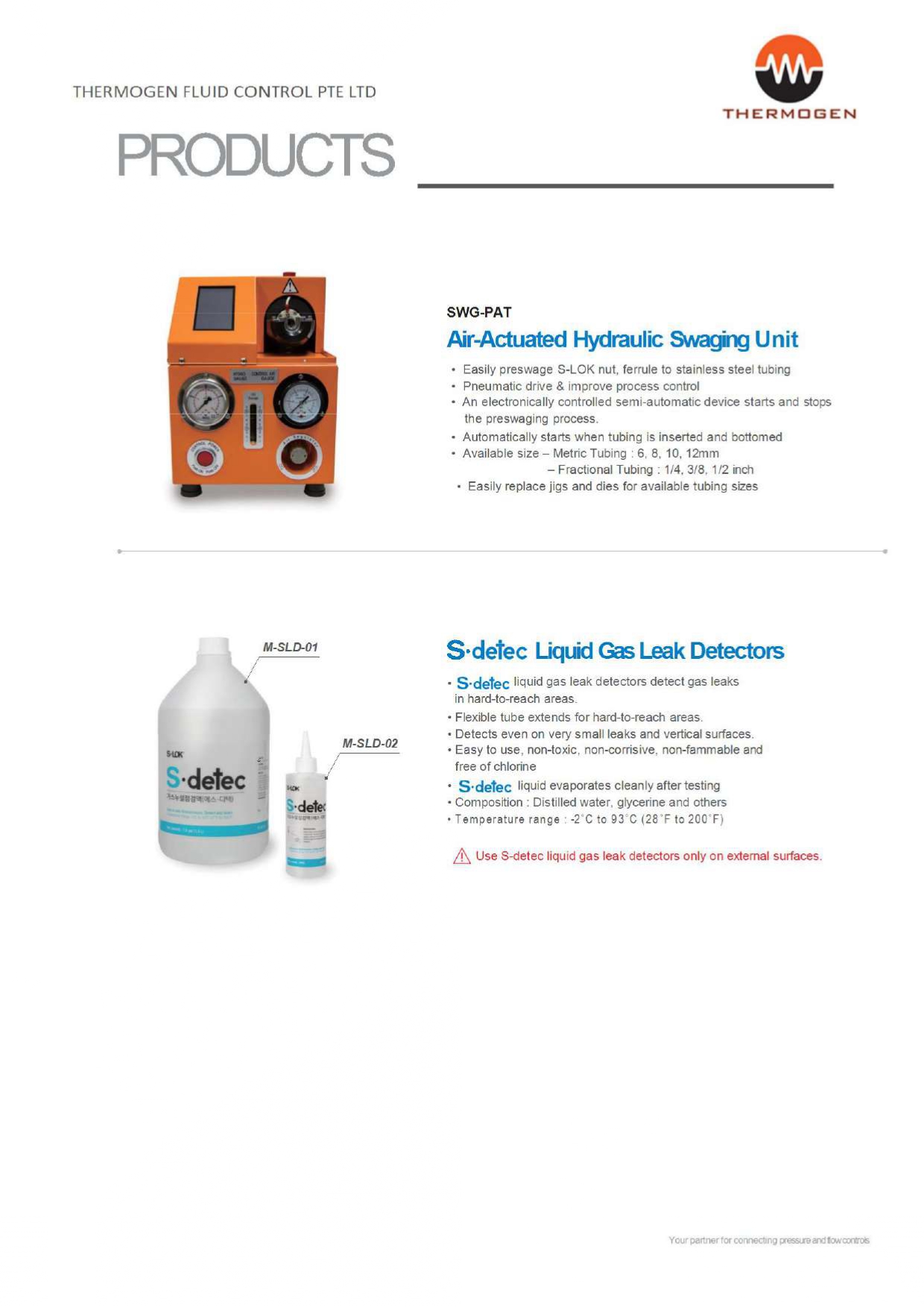

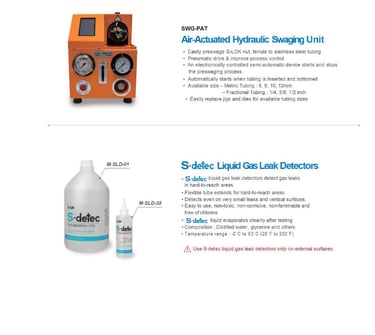

Air-Actuated Hydraulic Unit

SWG-PAT

Easily preswage S-LOK nut, ferrule to stainless steel tubing

Pneumatic drive & improve process control

An electronically controlled semi-automatic device starts and stops the preswaging process.

Automatically starts when tubing is inserted and bottomed

Available size-Metric Tubing: 6, 8, 10, 12mm

-Fractional Tubing: 1/4, 3/8, 1/2 inch

Easily replace jigs and dies for available tubing sizes

S-Detec Liquid Gas Leak Detector

S-detec liquid gas leak detectors detect gas leaks in hard-to-reach areas.

Flexible tube extends for hard-to-reach areas.

Detects even on very small leaks and vertical surfaces.

Easy to use, non-toxic, non-corrisive, non-fammable and free of chlorine

S-detec liquid evaporates cleanly after testing

Composition: Distilled water, glycerine and others

Temperature range: -2°C to 93°C (28°F to 200°F)

UHP Products

Clean Fittings

Metal Gasket Face Seal

Leak tight from vacuum positive pressure.

Standard inside surface finish is 10µin (0.25µm) Ra (Option: Suin (0.13µm) Ra)

Sizes: 1/4 to 1 in. & 6 to 18mm tubing

Diaphragm & Bellows Valves

Diaphragm Valves (Low Pressure Pneumatic Standard)

Diaphragm Valves (Low Pressure Manual Shut Off)

Diaphragm Valves (Low Pressure Manual-Block)

Diaphragm Valves (Low Pressure Manual Forged)

Diaphragm Valves (Low Pressure Pneumatic Block)

Diaphragm Valves (Low Pressure Manual High Flow)

Diaphragm Valves (High Pressure Manual Standard)

Diaphragm Valves (High Pressure Pneumatic Standard)

Diaphragm Valves (High Pressure Pneumatic High Flow)

Bellows Valves (Low Pressure Manual Forged)

Bellows Valves (Low Pressure Pneumatic Forged)

Bellows Valves (Low Pressure Manual Casting)

Clean Ball Valves (Hex 2 pieces / 3 pieces)

Check Valves (Low Pressure Manual- Standard)

ETC.

Quick Connectors

Filters

Flexible Hose

Condensate Pot & Air Distribution Manifolds

Sample Cylinder

Tubing

Other Industrial Product

Air Distribution Manifolds

SADM Series

Pressure rating: up to Class 2500 (Sch-XXS)

High & Low Pressure Rating Options

Single & Double sided port way

Wide range of Valve, Plugs options available

Sizes: 1 to 4 in. piping

Pressure Equipment Directive (PED) 2014/68/EU (Module H) Certified

Condensate Pot

CDP Series

Pressure rating up to Class 2500 (Sch-XXS)

High & Low Pressure Rating Options

Variety material and shapes available

Wide range of Valve, Plugs options available

Sizes: 3 to 4 in piping

Pressure Equipment Directive (PED) 2014/68/EU (Module H) Certified

Sample Cylinders

SD Series

Pressures rating: up to 5000 psi (344 bar)

Volume from 40 to 3785 cm²

Double-ended sample cylinder

304L, 316L stainless steel and alloy 400

The body made of seamless tubing

Cold formed female NPT thread provide greater strength

Smooth internal surface without foreign particles

1/8", 1/4" and 1/2" female NPT connections

Pressure Equipment Directive (PED) 2014/88/EU (Module H) Certified

DOT 3A,3E 1,800psi Sample Cylinders Certified

Process Valves

Electric Motors

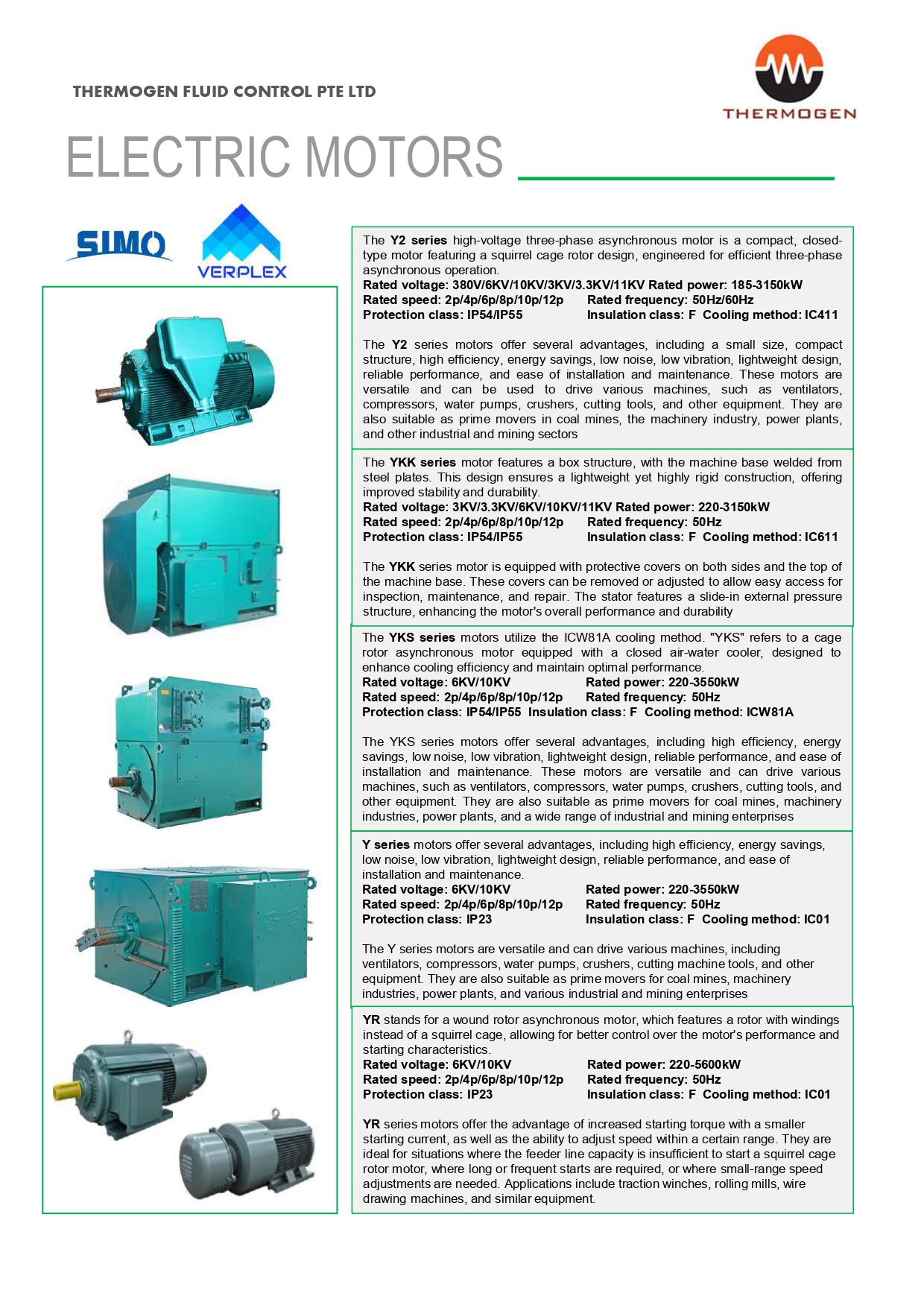

The Y2 series high-voltage three-phase asynchronous motor is a compact, closed-type motor featuring a squirrel cage rotor design, engineered for efficient three-phase asynchronous operation.

Rated voltage: 380V/6KV/10KV/3KV/3.3KV/11KV Rated power: 185-3150kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz/60Hz
Protection class: IP54/IP55 Insulation class: F Cooling method: IC411

The Y2 series motors offer several advantages, including a small size, compact structure, high efficiency, energy savings, low noise, low vibration, lightweight design, reliable performance, and ease of installation and maintenance. These motors are versatile and can be used to drive various machines, such as ventilators, compressors, water pumps, crushers, cutting tools, and other equipment. They are also suitable as prime movers in coal mines, the machinery industry, power plants, and other industrial and mining sectors.

The YKK series motor features a box structure, with the machine base welded from steel plates. This design ensures a lightweight yet highly rigid construction, offering improved stability and durability.

Rated voltage: 3KV/3.3KV/6KV/10KV/11KV Rated power: 220-3150kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz
Protection class: IP54/1P55 Insulation class: F Cooling method: IC611

The YKK series motor is equipped with protective covers on both sides and the top of the machine base. These covers can be removed or adjusted to allow easy access for inspection, maintenance, and repair. The stator features a slide-in external pressure structure, enhancing the motor's overall performance and durability.

The YKS series motors utilize the ICW81A cooling method. "YKS" refers to a cage rotor asynchronous motor equipped with a closed air-water cooler, designed to enhance cooling efficiency and maintain optimal performance.

Rated voltage: 6KV/10KV Rated power: 220-3550kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz
Protection class: IP54/IP55 Insulation class: F Cooling method: ICW81A

The YKS series motors offer several advantages, including high efficiency, energy savings, low noise, low vibration, lightweight design, reliable performance, and ease of installation and maintenance. These motors are versatile and can drive various machines, such as ventilators, compressors, water pumps, crushers, cutting tools, and other equipment They are also suitable as prime movers for coal mines, machinery industries, power plants, and a wide range of industrial and mining enterprises.

Y series motors offer several advantages, including high efficiency, energy savings, low noise, low vibration, lightweight design, reliable performance, and ease of installation and maintenance.

Rated voltage: 6KV/10KV Rated power: 220-3550kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency. 50Hz
Protection class: IP23 Insulation class: F Cooling method: IC01

The Y series motors are versatile and can drive various machines, including ventilators, compressors, water pumps, crushers, cutting machine tools, and other equipment. They are also suitable as prime movers for coal mines, machinery industries, power plants, and various industrial and mining enterprises.

YR stands for a wound rotor asynchronous motor, which features a rotor with windings instead of a squirrel cage, allowing for better control over the motor's performance and starting characteristics.

Rated voltage: 6KV/10KV Rated power: 220-5600kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz
Protection class: IP23 Insulation class: F Cooling method: IC01

YR series motors offer the advantage of increased starting torque with a smaller starting current, as well as the ability to adjust speed within a certain range. They are ideal for situations where the feeder line capacity is insufficient to start a squirrel cage rotor motor, where long or frequent starts are required, or where small-range speed adjustments are needed. Applications include traction winches, rolling mills, wire drawing machines, and similar equipment.

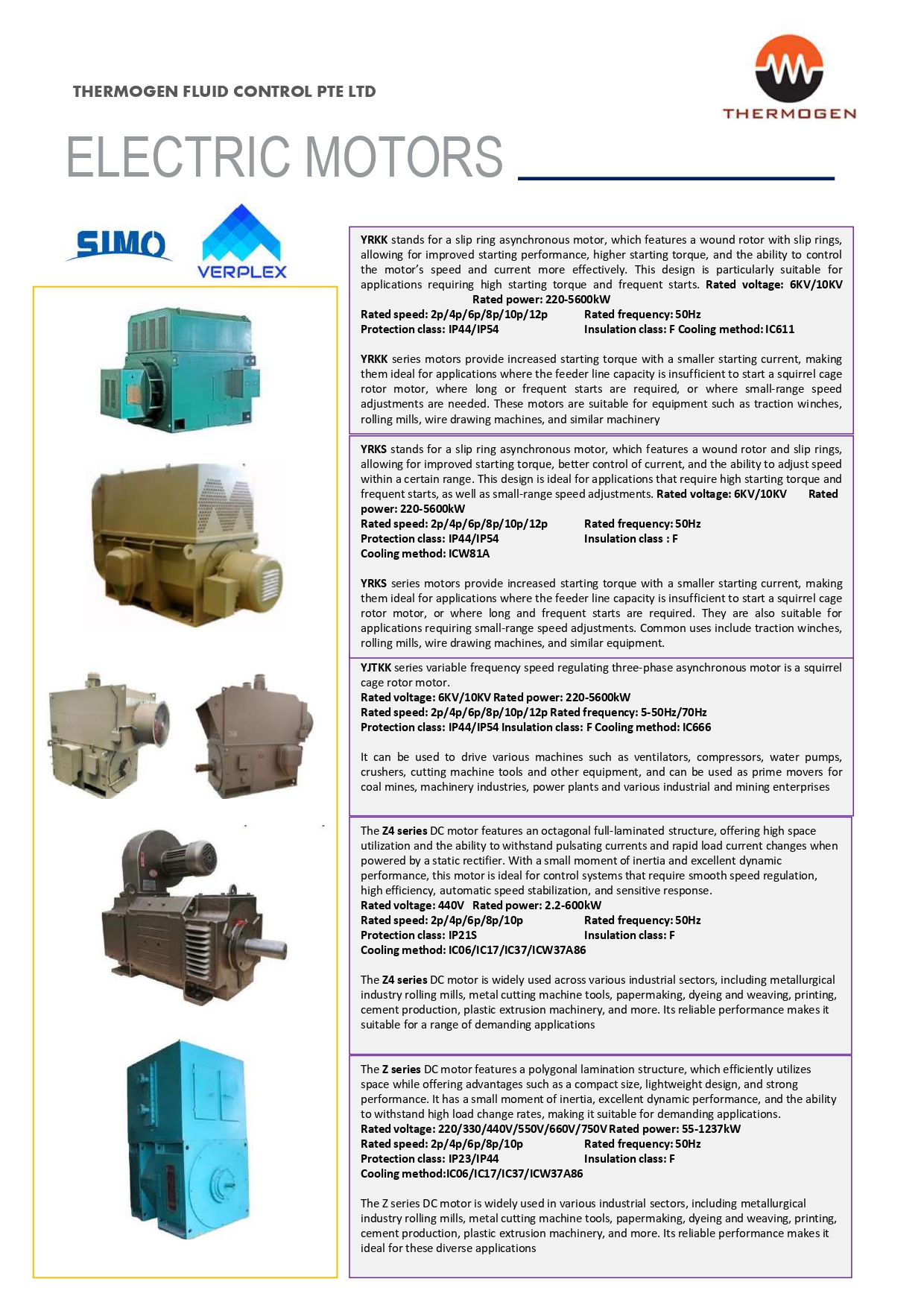

YRKK stands for a slip ring asynchronous motor, which features a wound rotor with slip rings, allowing for improved starting performance, higher starting torque, and the ability to control the motor's speed and current more effectively. This design is particularly suitable for applications requiring high starting torque and frequent starts.

Rated voltage: 6KV/10KV Rated power: 220-5600kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz
Protection class: IP44/IP54 Insulation class: F Cooling method: IC611

YRKK series motors provide increased starting torque with a smaller starting current, making them ideal for applications where the feeder line capacity is insufficient to start a squirrel cage rotor motor, where long or frequent starts are required, or where small-range speed adjustments are needed. These motors are suitable for equipment such as traction winches, rolling mills, wire drawing machines, and similar machinery.

YRKS stands for a slip ring asynchronous motor, which features a wound rotor and slip rings, allowing for improved starting torque, better control of current, and the ability to adjust speed within a certain range. This design is ideal for applications that require high starting torque and frequent starts, as well as small-range speed adjustments.

Rated voltage: 6KV/10KV Rated power: 220-5600kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 50Hz
Protection class: IP44/IP54 Insulation class: F
Cooling method: ICW81A

YRKS series motors provide increased starting torque with a smaller starting current, making them ideal for applications where the feeder line capacity is insufficient to start a squirrel cage rotor motor, or where long and frequent starts are required. They are also suitable for applications requiring small-range speed adjustments. Common uses include traction winches, rolling mills, wire drawing machines, and similar equipment.

YJTKK series variable frequency speed regulating three-phase asynchronous motor is a squirrel cage rotor motor.

Rated voltage: 6KV/10KV Rated power: 220-5600kW
Rated speed: 2p/4p/6p/8p/10p/12p Rated frequency: 5-50Hz/70Hz
Protection class: IP44/IP54 Insulation class: F Cooling method: IC666

It can be used to drive various machines such as ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment, and can be used as prime movers for coal mines, machinery industries, power plants and various industrial and mining enterprises.

The 24 series DC motor features an octagonal full-laminated structure, offering high space utilization and the ability to withstand pulsating currents and rapid load current changes when powered by a static rectifier. With a small moment of inertia and excellent dynamic performance, this motor is ideal for control systems that require smooth speed regulation, high efficiency, automatic speed stabilization, and sensitive response.

Rated voltage: 440V Rated power: 2.2-600kW
Rated speed: 2p/4p/6p/8p/10p Rated frequency: 50Hz
Protection class: IP215 Insulation class: F
Cooling method: IC06/IC17/IC37/ICW37A86

The 24 series DC motor is widely used across various industrial sectors, including metallurgical industry rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, printing, cement production, plastic extrusion machinery, and more. Its reliable performance makes it suitable for a range of demanding applications.

The Z series DC motor features a polygonal lamination structure, which efficiently utilizes space while offering advantages such as a compact size, lightweight design, and strong performance. It has a small moment of inertia, excellent dynamic performance, and the ability to withstand high load change rates, making it suitable for demanding applications.

Rated voltage: 220/330/440V/550V/660V/750V Rated power: 55-1237kW
Rated speed: 2p/4p/6p/8p/10p Rated frequency: 50Hz
Protection class: IP23/IP44 Insulation class: F
Cooling method:IC06/IC17/IC37/ICW37A86

The Z series DC motor is widely used in various industrial sectors, including metallurgical industry rolling mills, metal cutting machine tools, papermaking, dyeing and weaving, printing, cement production, plastic extrusion machinery, and more. Its reliable performance makes it ideal for these diverse applications.

The 22 series DC motors come in 11 frame sizes, with each frame size offering two core lengths. This series Includes DC motors, DC generators, and DC voltage-regulated generators. The DC motors are used for general transmission purposes, the DC generators serve as power supplies, and the voltage-regulated generators are designed for use in battery packs.

Rated voltage: 110V/220V Rated power: 0.4-200kW
Rated speed: 2p/4p/6p/8p/10p Rated frequency: 50Hz
Protection class: IP21 Insulation class: B Cooling method: IC01

The 22 series DC motors can be used in various industries such as metal cutting machine tools, papermaking, dyeing and weaving, printing, cement, and more. The generators in this series are suitable for use as power supplies, lighting sources, or other constant voltage power supplies, offering reliable performance in diverse applications.

The YE3 series motors feature casings made from high-strength gray cast iron, providing durability and robust protection. The coils are constructed with high-quality corrosion-resistant copper wire, ensuring enhanced performance and longevity.

Rated voltage: 380V/400V/415V/660V/690V Rated Power: 0.18-1000kW
Rated speed: 2p/4p/6p/8p/10p/10p Rated frequency: 50Hz
Protection class: IP55 Insulation class: F Cooling method: IC411

The YE3 series motors offer several advantages, including low energy loss, high efficiency, a compact structure, stable operation, low vibration, low noise, long service life, and ease of use and maintenance. These motors are widely used in various applications, including machine tools, water pumps, fans, compressors, reducers, and other mechanical transmission equipment, such as in transportation, mixing, printing, agricultural machinery, and food processing industries.

YBZ motors offer excellent flameproof performance, high reliability, and a compact structure. They are energy-efficient, safe, and environmentally friendly, with low vibration and noise. Additionally, they are easy to install and maintain.

Rated voltage: 6KV/10KV Rated power: 185-1600kW
Rated speed: 2p/4p/6p/8p/10p Rated frequency: 50Hz
Protection class: IP55 Insulation class: F Cooling method: IC411

The YBX3 explosion-proof motor is mainly used to drive various general machinery, including compressors, water pumps, crushers, winches, centrifuges, cutting machine tools, and transportation machinery.

YVFE3 series of motor is a variable frequency and speed regulating three phase asynchronous motor derived from YE3 series of motor.

Rated voltage: 380V/400V/415V/660V/690V Power: 0.55-1000kW
Rated speed: 2p/4p/6p/8p/10p/10p Rated frequency: 50Hz
Protection class: IP55 Insulation class: F Cooling method: IC416

Advantages: The system offers significant energy-saving effects, excellent speed regulation performance, a wide speed range, low noise, low vibration, and ease of use and maintenance. It can be widely applied in speed regulation for constant torque and power in industries such as light manufacturing, textiles, chemicals, metallurgy, and machine tools. Additionally, it is effective in energy-saving speed regulation for applications like fans, pumps, and more.

JS series medium-sized motors can drive various machines, such as ventilators, compressors, water pumps, crushers, ball mills, cutting machine tools, transportation machinery and other equipment. They can be used as prime movers in coal mines, machinery industry, power plants and various industrial and mining enterprises.

Rated voltage: 380V/6KV/10KV Rated power: 60-800kW
Rated speed: 2p/4p/6p/8p/10p Rated frequency: 50Hz
Protection class: IP21 Insulation class: B Cooling method: 1001

JS series motors are squirrel-cage rotor motors, which allow full-voltage direct starting. If the user's power grid does not support full-voltage starting, reduced-voltage starting can be used. JR series motors are wound rotor motors. During startup, JR motors must be connected to a starting rheostat in the rotor circuit.

THERMOGEN FLUID CONTROL PTE LTD

QUICK CONNECT
